Quikly Swap

Quikly Swap campaigns incentivize a specific action in exchange for an offer. You can easily layer in urgency or scarcity by limiting rewards, or configuring offers that decrease in value over time. For example, the marketing message could be:

Sign up in the next 24 hours to receive $10 off your order, or in the next 48 hours for $5 off your next order.

Or, alternatively:

The first 500 people to sign up will receive a code good for 20% off.

Overview

Swap campaigns are generally comprised of three visual components:

instructions banner: conveys real-time offer detail (current offer eligilbilty, quantity or time left, etc)
offer presentation: offer codes, fine print, terms
redemption banner: display any previously claimed offers, useful during checkout

In terms of the API, the basic concept for a Swap campaign is to 1) query for offer details, 2) trigger an event that indicates the targeted action was completed, and 3) query for claimed offer details.

Campaigns can be configured to be visible to all users, or only those that have obtained a unique access key via an activation URL.

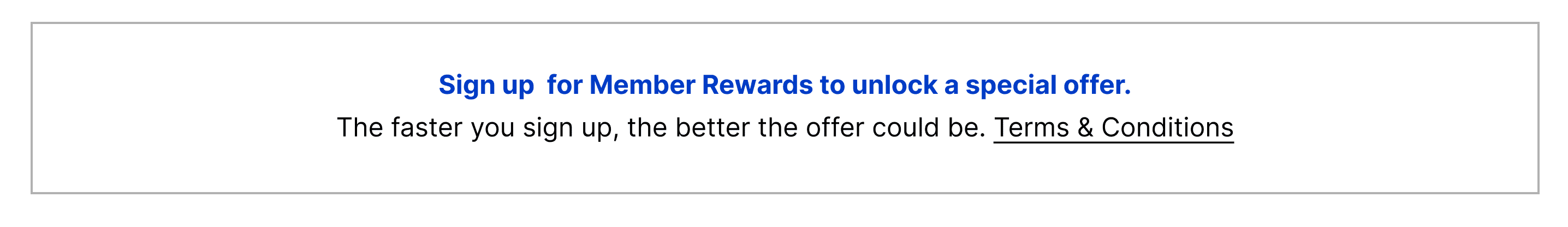

Instructions Banner

Use the following query to fetch dynamic content useful to explain what action is needed to receive the offer, as well as what offers are available.

1query InstructionsQuery($hashid: String!) {
2  quikly(hashid: $hashid) {
3    id
4    instructionsStatic: customContentFor(key: "embed_instructions_static")
5    instructionsUpcoming: customContentFor(key: "embed_instructions_upcoming_offer")
6    instructionsExpiring: customContentFor(
7      key: "embed_instructions_expiring_offer"
8    )
9    instructionsLast: customContentFor(key: "embed_instructions_last_offer")
10    dealClosedTitle: customContentFor(key: "deal_closed")
11    dealClosedSubtitle: customContentFor(key: "deal_closed_subtitle")
12    ended
13    claimBySpeed
14    incentiveTiers {
15      id
16      rank
17      description
18      upperResponseTime
19      quantity
20      claimCount
21      allClaimed
22    }
23  }
24}

The fields include:

quiklyrefers to the campaign instance
customContentFor loads text content from the CMS
ended is a boolean value indicating if the campaign has expired
claimBySpeed is a boolean value indicating if the offer value is determined by the speed of response rather than rank
incentiveTiers provides info about the offer types available

Claiming an Offer

To claim an offer, send the user's email address to the createEmbeddedClaim mutation. This returns a unique offer identifier (qid) and receiptToken used to securely fetch offer details, as well as the user's authToken which can then be used to identify this user on subsequent interactions with the API via the authorization header.

1mutation createEmbeddedClaim(
2  $dealHashid: String!
3  $email: String!
4) {
5  createEmbeddedClaim(
6    input: { dealId: $dealHashid, email: $email }
7  ) {
8    errors {
9      key
10      message
11    }
12    user {
13      id
14      authToken
15    }
16    order {
17      id
18      qid
19      receiptToken
20    }
21  }
22}

You should store the qid, receiptToken from the order object locally to retrieve the offer detail.

Fetching Offer Detail

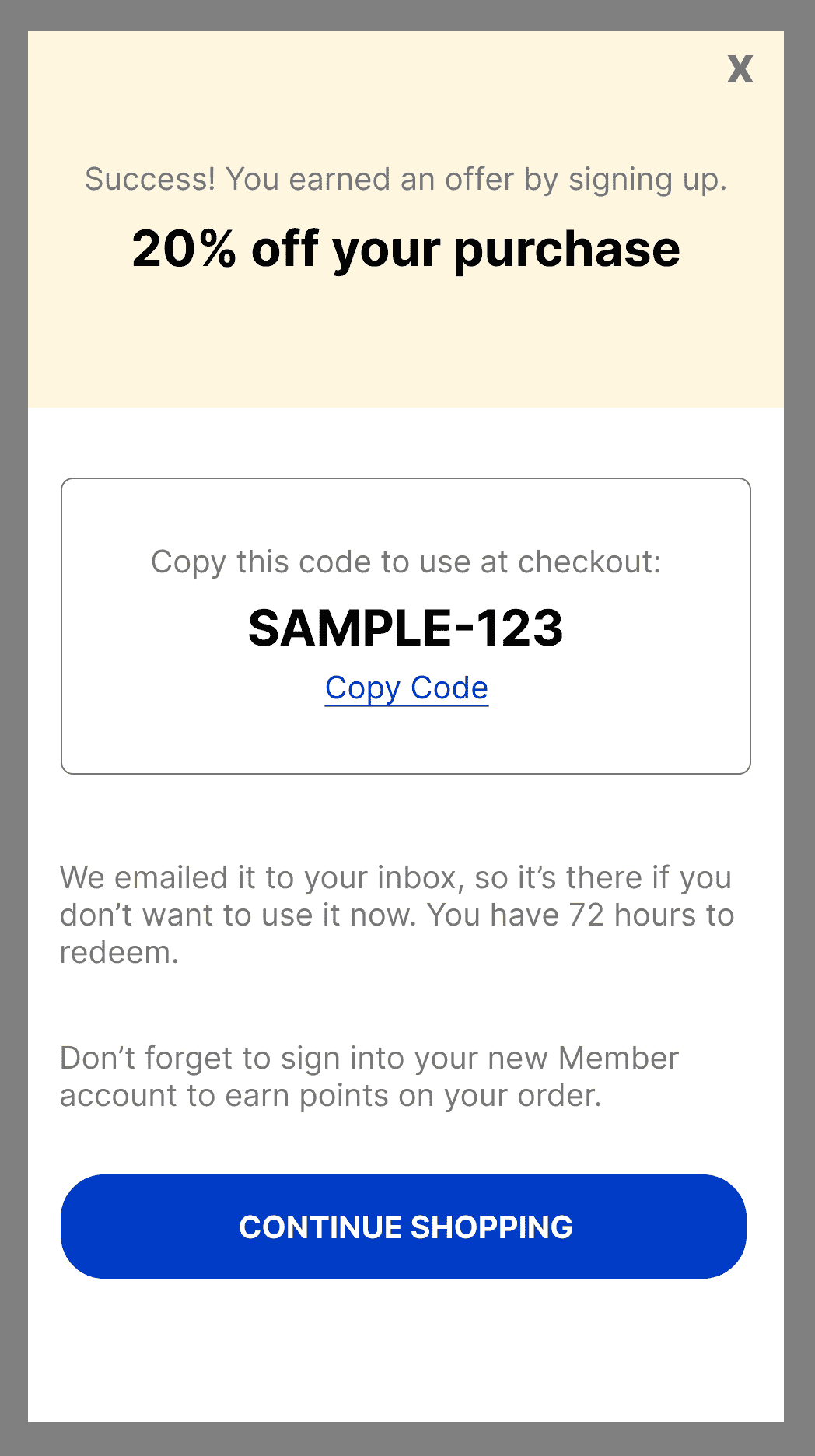

Use the getOrder query to fetch offer details. At a minimum you'll probably want top display the itemFullDescription the codes, but the API also provides access to other useful content as demonstrated in the Offer Detail screen below.

1query getOrder($orderId: Int!, $receiptToken: String!) {
2  order(
3    orderId: $orderId
4    receiptToken: $receiptToken
5  ) {
6    id
7    qid
8    expirationDate
9    itemFullDescription
10    itemInstructions
11    finePrint
12    codes: codesWithLabelsAndBarcodes {
13      instore
14      pin
15      value
16      label
17    }
18    links {
19      id
20      name
21      url
22      position
23    }
24    quikly {
25      id
26      hashid
27      termsUrl
28      congratsMessage: customContentFor(key: "claim_congrats")
29      congratsHeader: customContentFor(key: "claim_congrats_embedded_header")
30      congratsSubheader: customContentFor(
31        key: "claim_congrats_embedded_subheader"
32      )
33      redeemCopy: customContentFor(key: "embed_redeem_body")
34    }
35  }
36}

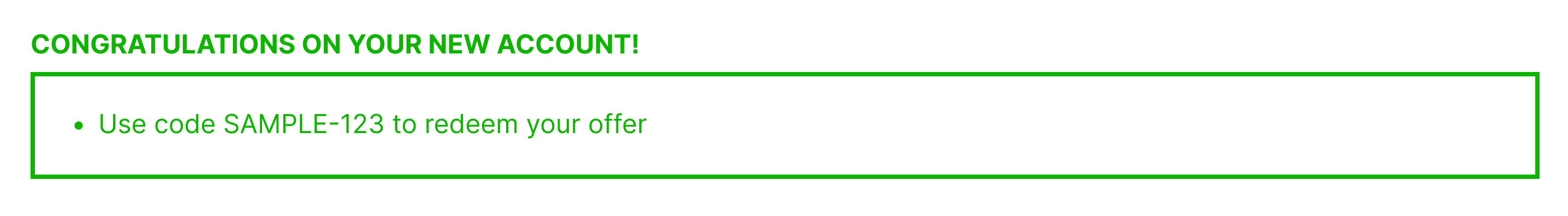

If you wanted to simply display a banner like the image below, you may end up building a query like this:

1query getOrder($orderId: Int!, $receiptToken: String!) {
2  order(
3    orderId: $orderId
4    receiptToken: $receiptToken
5  ) {
6    id
7    qid
8    redeemCopy
9    codes: codesWithLabelsAndBarcodes {
10      pin
11      value
12    }
13  }
14}

At this point, referencing the OrderType in the GraphiQL Explorer will be very useful!
